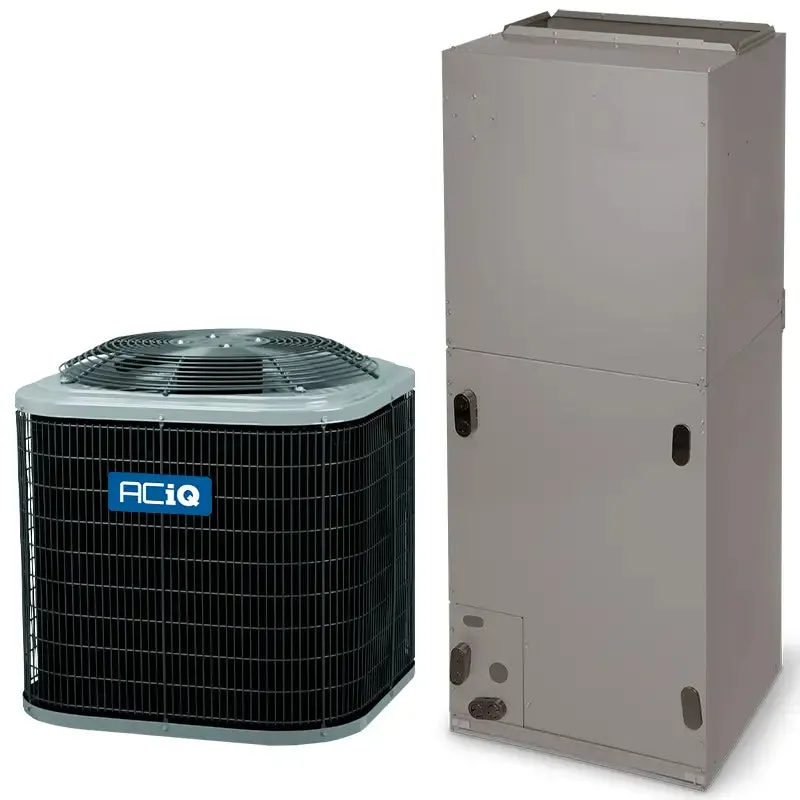

2.5 Ton 14.3 SEER2 ACiQ Heat Pump Split System - Multi-Positional

With tons of extra features and a great price, an ACiQ heat pump air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.

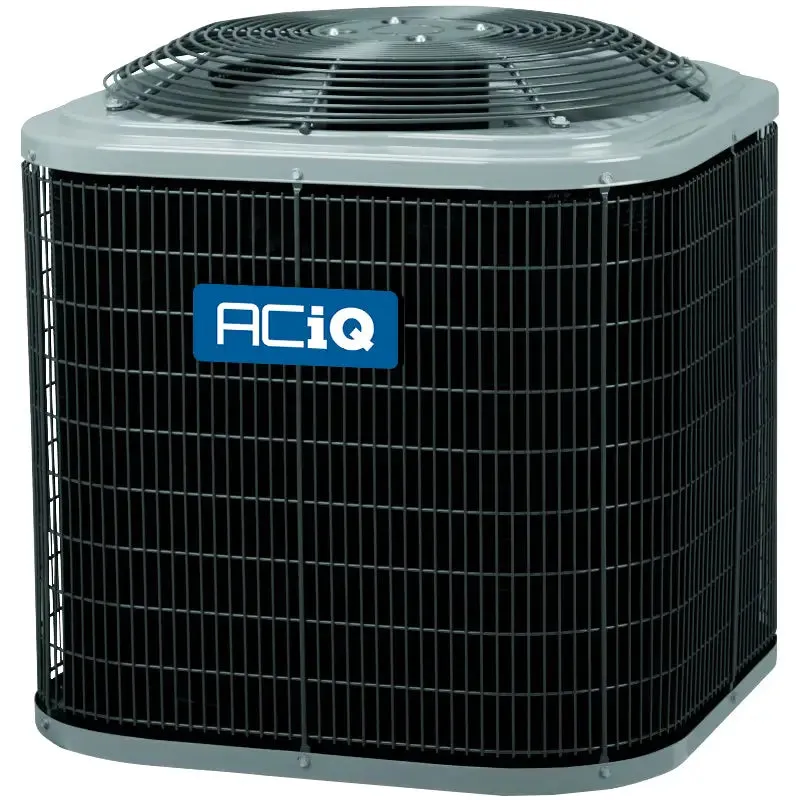

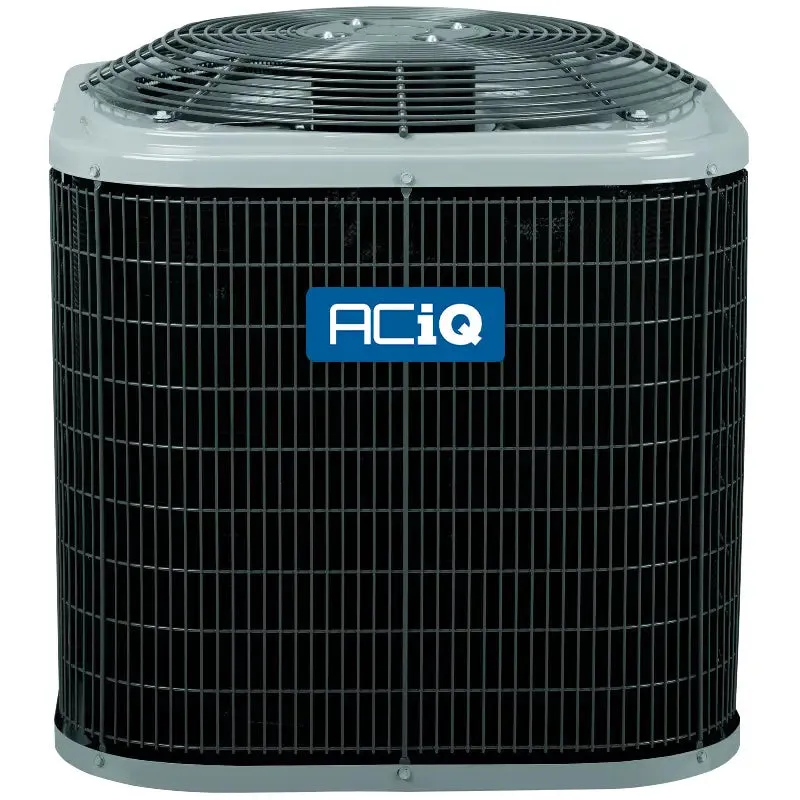

2.5 Ton 14.3 SEER2 ACiQ Heat Pump

The ACiQ R4H5S30AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• 2.5 ton, 14.3 SEER2 heat pump condenser

• Can cool up to a small house in average conditions

• Single stage compressor

• Filter drier included to be field-installed


2.5 Tons

The ACiQ R4H5S30AKAAA heat pump condenser has an output of 2.5 tons, generally enough to heat and cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

14.3 SEER2

The ACiQ R4H5S30AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.

High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

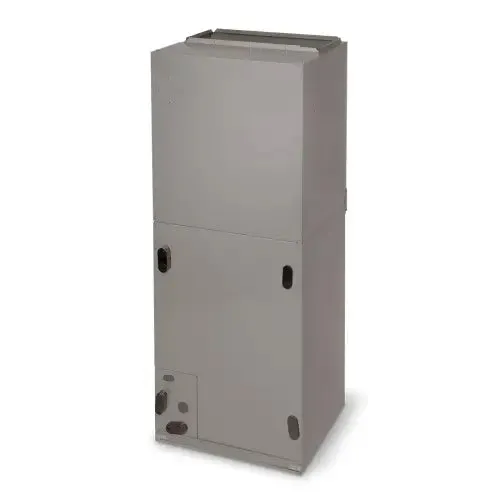

2.5 Ton Multi-Positional ACiQ Air Handler

With its efficient 5-speed ECM blower motor and factory-installed TXV kit, the ACiQ FJMA4X30L0BB is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

Quick Facts:

• 2.5 ton air handler

• Multi-Tap 5-Speed ECM blower motor

• Multi-positional - can be installed in the upflow, downflow, and horizontal configurations

• Factory-installed TXV kit for enhanced energy optimization

• Compatible with both AC-only and heat pump condensers

• Sturdy, fully insulated cabinet

• Compact size - can be installed in most manufactured housing applications


2.5 Tons

The ACiQ FJMA4X30L0BB air handler is rated for an output of 2.5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

Installation and Durability

To make a more versatile unit, ACiQ designed the FJMA4X30L0BB to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FJMA4X30L0BB air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.

Intelligent Comfort

The FJMA4X30L0BB air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FJMA4X30L0BB meets ACiQ's superior standards.

What's Included:

• 1x ACiQ 2.5 Ton 14.3 SEER2 Heat Pump

• 1x ACiQ 2.5 Ton Multi-Positional Air Handler


Condenser Specifications:

Air Handler Specifications:
