CC520MXL2E1 Masonry Saw 2.0Hp 2HP with 115V/230V motor.
Cat # 08667
Part#5800814

• Stay level blade guard
• Removable cutting head
• Leg kit standard-folding stand optional
• Side carrying handles
• Replaceable conveyor cart rails
• Includes water pump
• Vulcanized rubber coated material slide cart
• Open throat cutting
• Easy and safe access to depth control lock
• Open back cutting allows longer material to be cut
• Heavy duty frame design help resist damage to saw body
• Reinforced slide rails keep the cart running smoothly
• Simple yet strong design allows easy maintenance
• Sealed drain hole on the bottom of the tray allows quick clean up

Max Depth of Cut: 5"
Blade Shaft Diameter: 7/8"
Arbor Diameter: 1"
Blade Shaft bearings: Flange block ball bearings
Blade shaft Drive: 2 Belts
Blade Mounting: Right (electric) and Left for (Gas)
Blade Raise/Lower: Counter Balanced, Spring tensioned head pivots on two 7/8" flange block bearings
Blade coolant: Dual Spray tubes, pump fed (electric models), Pump from tray (gas models)
Air Filter: 3 Stage cyclone (gas models)
Fuel Capacity: 1 Gallon (gas models)
High Temp Shut off: included (electric models)

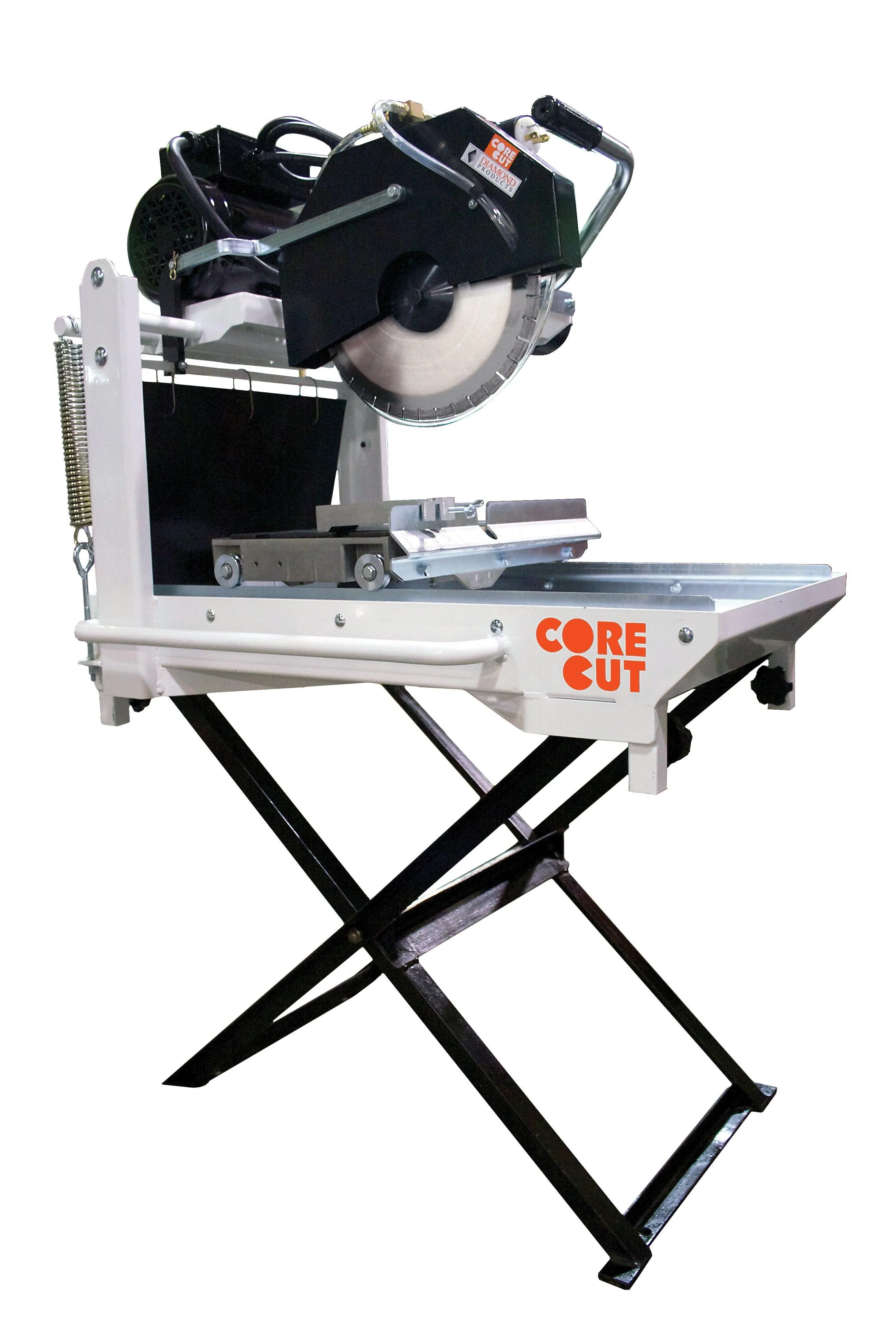

Electric Model shown for reference with optional folding stand Part# 6030042 Cat# 46893
