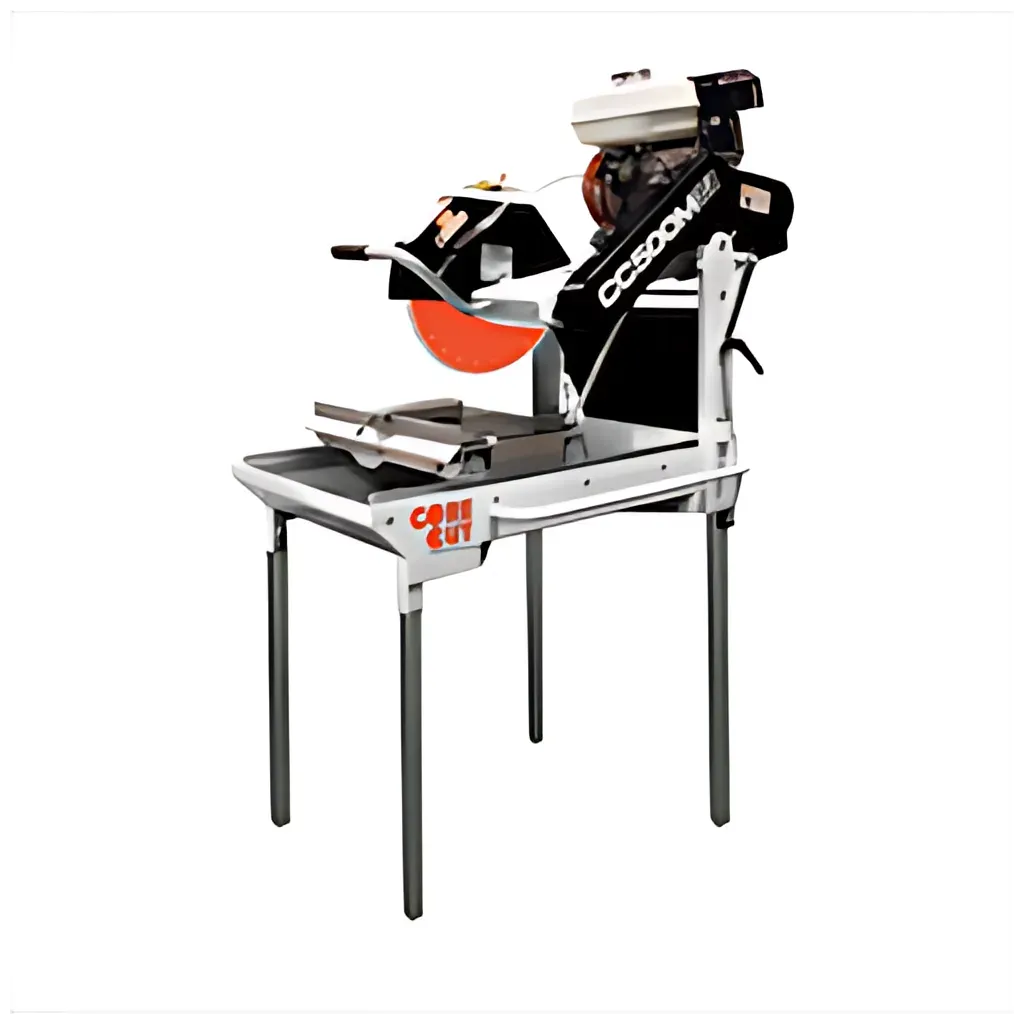

DIAMOND PRODUCTS: CC500MXL2 MASONRY TABLE SAW

Stay level blade guard
-Removable cutting head
-Leg kit standard-folding stand optional
-Side carrying handles
-Replaceable conveyor cart rails
-Includes water pump
-Vulcanized rubber coated material slide cart
-Open throat cutting
-Easy and safe access to depth control lock
-Open back cutting allows longer material to be cut
-Heavy duty frame design help resist damage to saw body
-Reinforced slide rails keep the cart running smoothly
-Simple yet strong design allows easy maintenance
-Sealed drain hole on the bottom of the tray allows quick clean up

Maximum Depth of Cut: 5”

Blade Shaft Diameter: 7/8”

Arbor Diameter: 1"

Blade Shaft Bearings: Flange block ball bearings

Blade Shaft Drive: 2 belt

Blade Mounting: Right (electric), Left (gas)

Blade Raise/Lower: Counterbalanced, spring tensioned head pivots on two 7/8” flange block bearings

Blade Coolant:Dual spray tubes, pump fed (electric models), pump from tray (gas models)

Air Filter:3-stage cyclone (gas models)

Fuel Capacity: 1 gallon (gas models)

High Temp Shut-off: Included (electric models)
