Tramex FBSK Data Logger Feedback Starter Kit
Logging ambient relative humidity conditions in buildings
WITH BLUETOOTH AND ACCOMPANYING APP

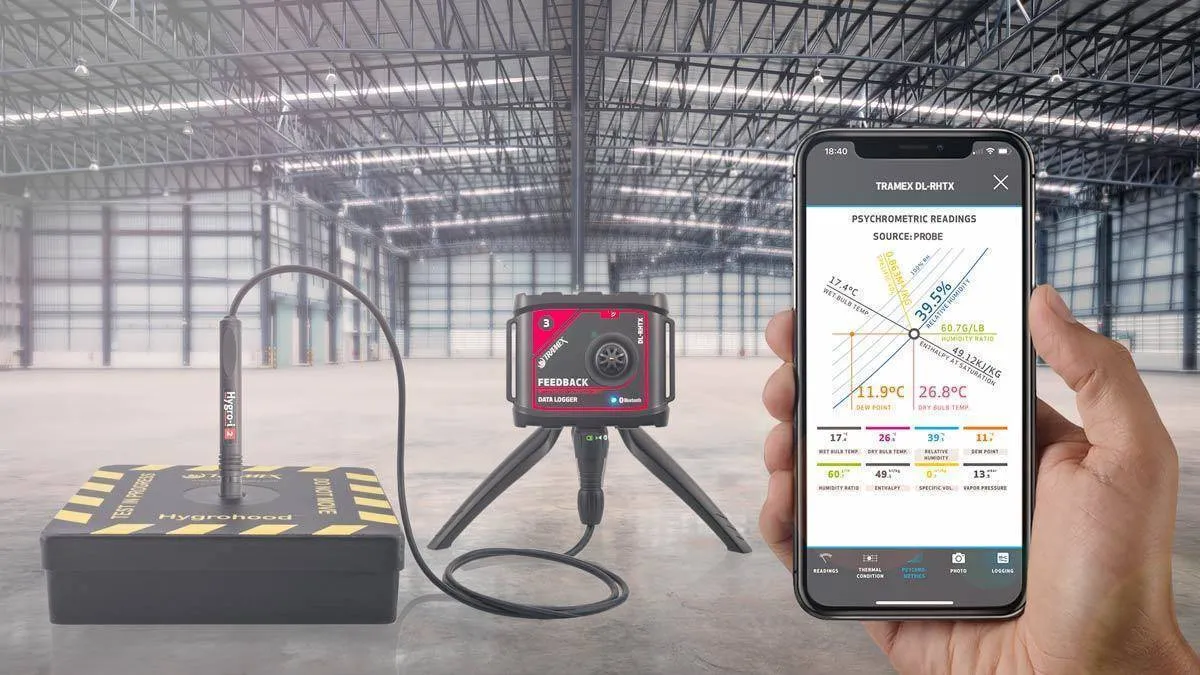

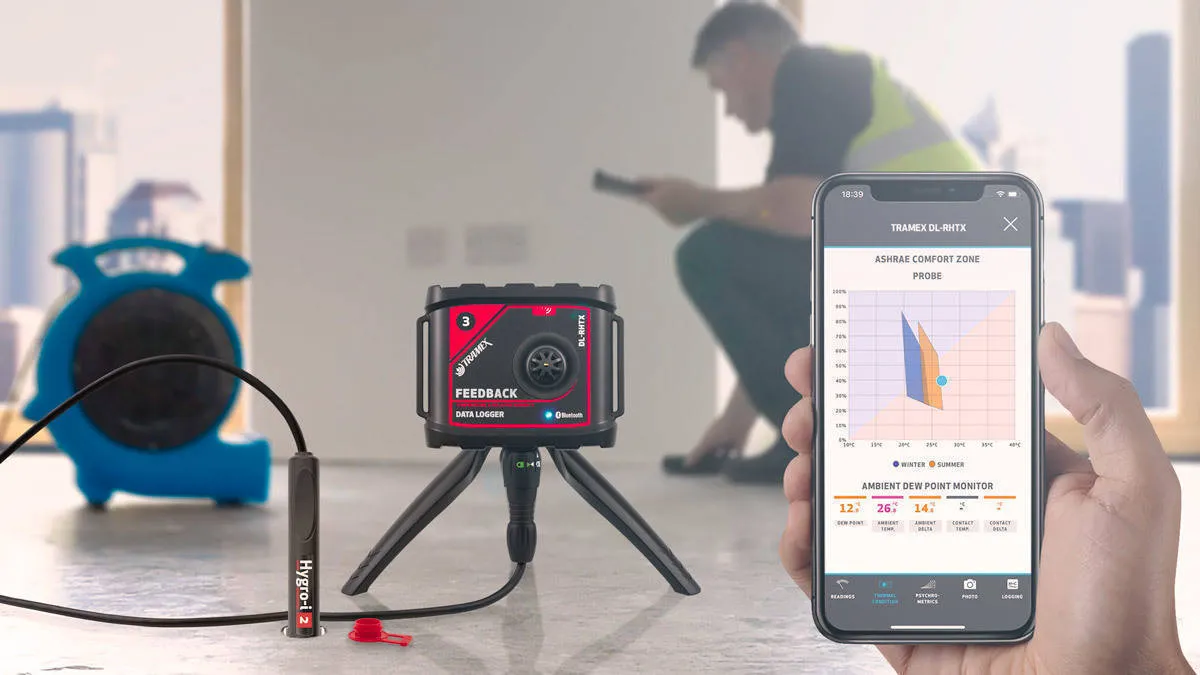

The Tramex FBSK is a compact kit designed for professionals who depend on accurate, reliable live & logged readings of relative humidity, temperature, dew point and humidity ratio. Monitor both ambient and in-situ conditions in buildings and building materials such as concrete as per ASTM F2170. The Tramex Feedback DataLogger and Tramex Meters App log up to 100,000 data point entries, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualize Live Readings, Thermal Conditions and Psychrometric Charts, as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the and a compatible iOS or Android mobile device. The kit comes in a protective Tramex Easy-travel case.

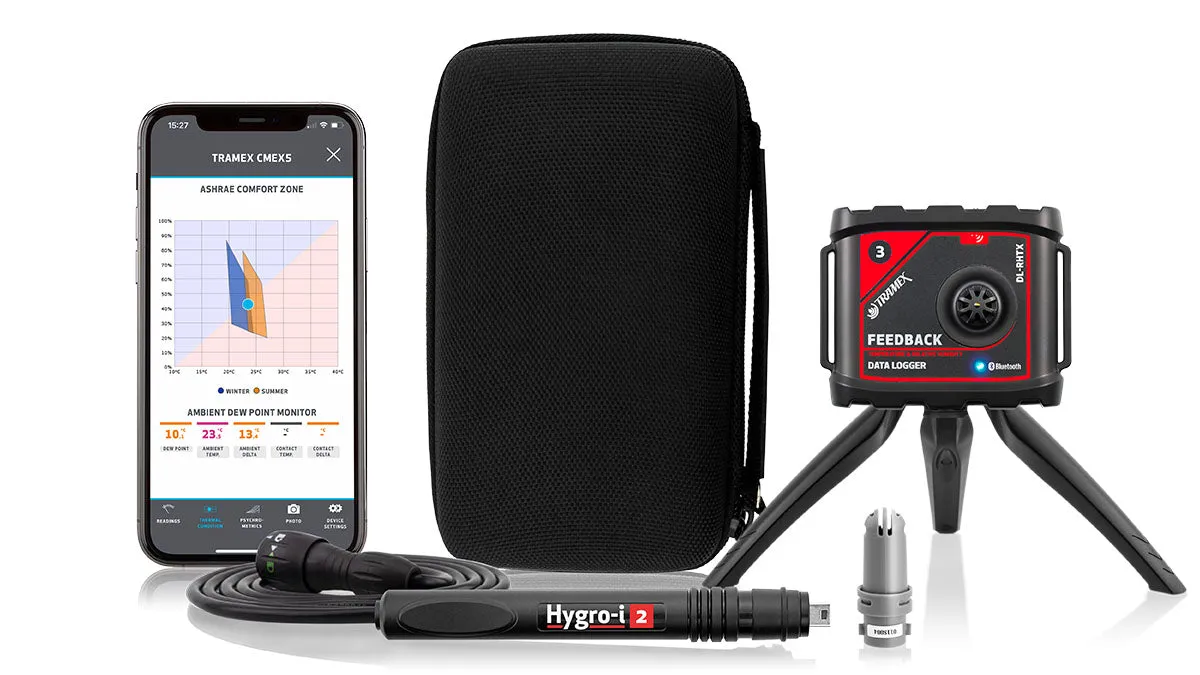

KIT INCLUDES
- DL-RHTX Data Logger
- Hygro-i2 probe
- Wall mounting
- Tripod Stand
FEATURES
- Bluetooth BLE enabled for use with mobile devices.
- Up to 100,000 data point entries possible.
- Instant set up and start modes.
- Used to perform BS 8201, 8203, 5325 and ASTM F2170.
- Ambient and In-situ RH and temperature logging Intuitive and instructive APP interface.
- Adjustable interactive chart, spreadsheet, report and easy-export functions.
- Connectivity up to 50 meters (165ft) for highly accessible data downloads.
SPECIFICATION
Feedback Datalogger DL-RHTX Measuring Range:
| Memory: | 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate: | Logger interval adjustable between 10 minutes and 1 hour |
| Transmission Range: | Up to 50m (165ft) line-of-sight |
| Bluetooth: | BLE Bluetooth Low Energy 4.2 compliant |
Relative Humidity Sensor specifications:
| Range: | 0 to 100%RH |
| Accuracy: | ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Resolution: | 0.1% over the complete range |
| Drift: | <0.25%RH per year |
Temperature Sensor specifications:
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Sensor Protection: | PTFE Film protects sensor opening from water & dust Drift: 0.03ºC (<0.04ºF) per year |
| Drift: | <0.03ºC (0.04ºF) per year |
Specifications of Kit:
| Size: | 180mm x 110mm x 50mm (7.1" x 4.3" x 2") |
| Weight: | 300g (10.5oz) |
| Power: | 1 x AA type battery 1.5 Volt |
